水泵

污水污物潜水电泵

污水污物潜水电泵(以下简称电泵),由水泵、密封、电动机三部分组成。 电动机位于电泵上部,分单相和三相异步电动机。水泵和电动机之间釆取双端面机械密封,每个固定止口密封处釆用“0”型耐油橡胶密封圈作静密封。该系列电泵具有结构紧凑、流量大、效率高、使用方便等特点,关键部位的机械密封采用硬质合金和优质碳化硅为材料,具有良好的防腐蚀、防渗漏、经久耐用等特点。

产品详情

应用范围:

该系列电泵广泛适用于市政污水处理、建筑工程、宾馆、矿工、池塘、印染、造纸、纺织等场所的污水污物的排放。是抽送泥浆、灰浆、生活废水、污水粪尿和含有纤维、纸屑等固体颗粒的理想设备。

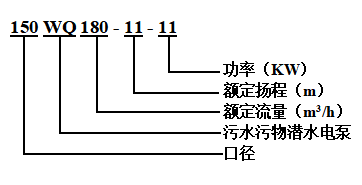

型号含义:

污水污物潜水电泵(图1)

使用条件:

1、该系列电泵配管及法兰连接尺寸按GB/T9113标准制造,按PN0.6Mpa尺寸制造, 结构紧凑,特别是低速排污泵运行更平稳更可靠。内置的高品质机械密封可有效将抽送介 质阻挡在外,避免水进入电机腔,以及特殊工艺处理的泵轴能有效防止腐蚀和减缓腐蚀,高配和高工艺要求综合保证了电机长时间可靠运行。该系列电泵特别适用于城市排涝、市政污水处理、建筑施工及矿业、市政环保等场所的污水污物的排放。是抽送泥浆、灰桨、 生活废水、污水粪尿和含有短纤维、纸屑等固体颗粒及农田灌溉、河塘清淤等场合理想的输水设备。

2、大功率电泵的定子内嵌热控开关。常温时为“常闭”状态,当定子温度达到125℃时,开关打开。安装接线时,二根“电机温升信号线”串联接入控制柜的停止按钮中。油室内装有漏水探头,用作漏水检测。“油室进水探头信号线”并与电源线中任何一线,接入漏电断路器中,当泵侧机械密封泄露,油室内的油水比例达到一定浓度,油水探头就发出报警信号(指示灯亮)并自动切断电源,使泵停止工作。维修人员应及时更换油室内的油,并检查和更换泵侧机械密封。

3、浮子开关:当电机侧机械密封泄漏、液体进入浮子开关室、渗入液体达到一定高度,浮子开关会发出报警信号(指示灯亮)并停泵,維修人员应进行检修并更换电机侧机械封。


技术参考:

产 品 型 号流 量(m3/h)扬 程(m)功 率 (kw)电 压 (v)转 速(r/min) 口 径(mm)泵效率
80WQ80-13-5.580135.538014508056
100WQ110-10-5.5110105.5380145010058.4
150WQ150-7-5.515075.5380145015063.5
80WQ80-20-7.580207.538014508063.6
100WQ100-15-7.5100157.5380145010068
150WQ145-9-7.514597.5380145015069.5
200WQ250-6-7.525067.5380145020062
100WQ100-25-111002511380145010060
150WQ180-11-111801111380145015069.2
200WQ300-7-11300711380145020069.2
250WQ400-5-11400511380145025057
100WQ100-30-151003015380145010060.3
150WQ200-15-152001515380145015068.7
200WQ250-11-152501115380145020068.5
250WQ500-5-15500515380145025063
100WQ100-35-18.51003518.5380145010058
150WQ180-20-18.51802018.5380145015065.5
200WQ250-15-18.52501518.5380145020069
200WQ350-10-18.53501018.5380145020066
250WQ500-7-18.5500718.5380145025064
300WQ650-5-18.5650518.5380145030058
100WQ100-40-221004022380145010064.5
150WQ200-22-222002222380145015068.3
200WQ300-16-223001622380145020067.2
200WQ400-10-224001022380145020069
250WQ500-9-22500922380145025065
300WQ650-7-22650722380145030059
100WQ120-45-301204530380145010057
150WQ180-30-301803030380145015066
200WQ250-22-302502230380145020069
250WQ500-12-305001230380145025068
250WQ600-6-30600630380145025068.3
300WQ800-7-30800730380145030068
300WQ1000-6-30100063038098030072
350WQ1500-4-30150043038098035062
100WQ120-50-371205037380145010059
150WQ200-35-372003537380145015066.1
200WQ300-28-373002837380145020071.4
200WQ350-25-373502537380145020071.5
250WQ600-12-376001237380145025069.4
300WQ800-9-37800937380145030068
350WQ1000-6-371000637380145035062.4
350WQ1100-6-37110063738098035061.1
400WQ1300-5-37130053738098040059.2
100WQ100-57-451005745380145010056
150WQ200-40-452004045380145015065.6
200WQ300-32-453003245380145020071.2
200WQ400-25-454002545380145020071
250WQ600-15-456001545380145025069.9
300WQ800-12-458001245380145030068.5
350WQ1200-8-451200845380145035064.6
350WQ1300-8-45130084538098035060.7
400WQ1700-6-45170064538098040059
100WQ100-65-551006555380145010054.9
150WQ180-50-551805055380145015060.6
200WQ300-40-553004055380145020069.4
200WQ400-30-554003055380145020071
250WQ600-20-556002055380145025069.8
300WQ800-15-558001555380145030069.5
350WQ1000-10-5510001055380145035061.5
350WQ1100-10-551100105538098035068
400WQ1300-8-551300855380145040061
400WQ1500-8-55150085538098040070
500WQ2200-5-55220055538074050075
100WQ120-75-751207575380145010051.9
150WQ200-60-752006075380145015063.4
200WQ350-45-753504575380145020068.3
250WQ600-25-756002575380145025073.6
300WQ800-20-758002075380145030066.6
350WQ1000-15-7510001575380145035068
350WQ1500-12-751500127538098035062.7
400WQ1300-13-7513001375380145040063
400WQ1700-10-751700107538098040069
500WQ2000-8-75200087538098050078.9
500WQ2700-6-75270067538074050082
100WQ120-85-901208590380145010052.4
150WQ200-70-902007090380145015068
200WQ300-60-903006090380145020070
200WQ400-50-904005090380145020070
250WQ600-30-906003090380145025073.9
300WQ800-25-908002590380145030070.9
350WQ1000-18-9010001890380145035069
350WQ1200-18-901200189038098035072
400WQ1300-16-9013001690380145040068
400WQ1500-15-901500159038098040073.3
500WQ2000-10-902000109038098050083.1
500WQ2500-8-90250089038074050085
600WQ3000-6-90300069038074060078
100WQ100-100-110100100110380145010052.4
150WQ180-80-11018080110380145015063.8
200WQ300-65-11030065110380145020069.3
250WQ600-40-11060040110380145025074.1
300WQ1000-25-110100025110380145030072.3
350WQ1300-20-110130020110380145035070.3
350WQ1600-16-11016001611038098035076
400WQ1500-17-110150017110380145040069
400WQ1800-15-11018001511038098040078
500WQ2500-10-11025001011038098050082.1
500WQ3000-8-1103000811038074050081.3
600WQ3200-7-1103200711038098060078
600WQ3800-6-1103800611038074060083
150WQ200-90-13220090132380145015062
200WQ400-75-13240075132380145020066
250WQ600-50-13260050132380145025070
300WQ800-36-13280036132380145030073
350WQ1100-28-132110028132380145035071.5
350WQ1500-20-13215002013238098035073
400WQ1700-16-132170016132380145040070.1
400WQ2000-15-13220001513238098040074
500WQ2800-10-13228001013238098050082
500WQ3100-10-13231001013238074050086
600WQ3700-8-1323700813238098060080
600WQ4000-8-1324000813238074060083.5
150WQ220-100-160220100160380145015067
200WQ400-85-16040085160380145020065.2
250WQ600-60-16060060160380145025074.1
300WQ800-40-16080040160380145030074.5
350WQ1000-35-160100035160380145035072.5
350WQ1200-35-16012003516038098035078.2
400WQ1600-20-160160020160380145040071
400WQ1600-22-16016002216038098040078
500WQ2600-16-16026001616038098050083
500WQ3000-14-16030001416038074050087
600WQ3700-10-16037001016038098060082
600WQ4000-10-16040001016038074060086.5
200WQ400-90-18540090185380145020068
250WQ600-70-18560070185380145025070
300WQ900-40-18590040185380145030078.1
350WQ1100-38-185110038185380145035077.8
400WQ1600-25-185160025185380145040076
400WQ2000-20-18520002018538098040081.9
500WQ3000-15-18530001518538098050079
600WQ3700-12-18537001218538098060078.6
250WQ750-75-20075075200380145025070
300WQ1000-45-200100045200380145030078
350WQ1300-35-200130035200380145035077
400WQ1500-30-200150030200380145040074.9
400WQ2300-22-20023002220038098040081
500WQ3500-15-20035001520038098050082.2
600WQ4500-12-20045001220038098060082
300WQ1100-45-250110045250380145030079.2
350WQ1500-36-250150036250380145035080
400WQ1800-30-250180030250380145040079.4
400WQ2200-28-25022002825038098040082.4
500WQ3000-21-25030002125038098050084.5
600WQ4000-18-25040001825038098060083
300WQ1000-55-315100055315380145030080
350WQ1500-45-315150045315380145035081
400WQ2000-36-31520003631538098040082.3
500WQ3500-25-31535002531538098050084.5
600WQ4500-20-31545002031538098060084.3
500WQ3000-35-40030003540038098050085
600WQ5000-22-40050002240038098060084.5
500WQ4000-32-55040003255038098050085.6
600WQ5500-25-55055002555038098060082.5
